AZ Climate Division 2

Single-Year Reconstruction and Extremes

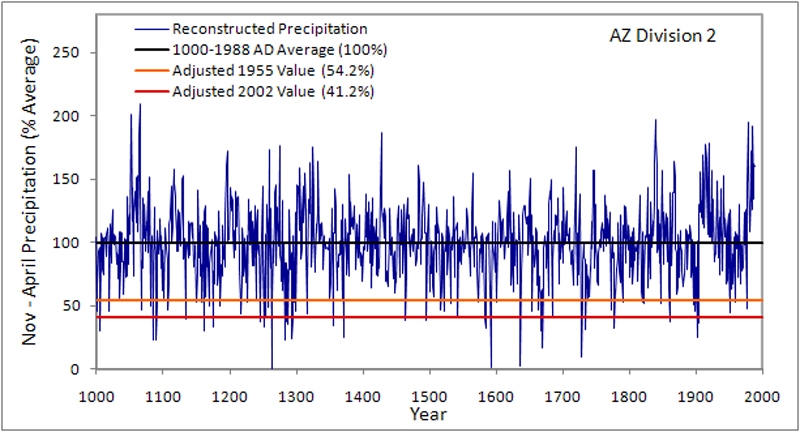

The graph below shows the cool season (November-April) precipitation reconstruction for Arizona climate division 2. Values are expressed as a percentage of 1000-1988 average precipitation. The adjusted 2002 and 1955 averages, the two driest years during the dry periods of the 1950s and 2000s, are plotted in orange and red, respectively, for comparison. As the reconstruction shows, as low percentage of the years in the past thousand years were drier than 2002.

R2 = 62%

View calibration/verification data

Reconstructed Average (1000-1988) = 155.2 mm

Instrumental Average (1896-2010) = 169.9 mm


Driest Year Wettest Year
Year Precipitation (mm) Percent Average Year Precipitaton (mm) Percent Average
1263 0.0 0.0 1065 325.0 209.5
1592 1.9 1.2 1052 312.3 201.3
1637 3.9 2.5 1839 305.8 197.1
1729 14.6 9.4 1428 289.7 186.7
1670 25.4 16.4 1064 288.7 186.1

Multi-Year Reconstructions and Extremes

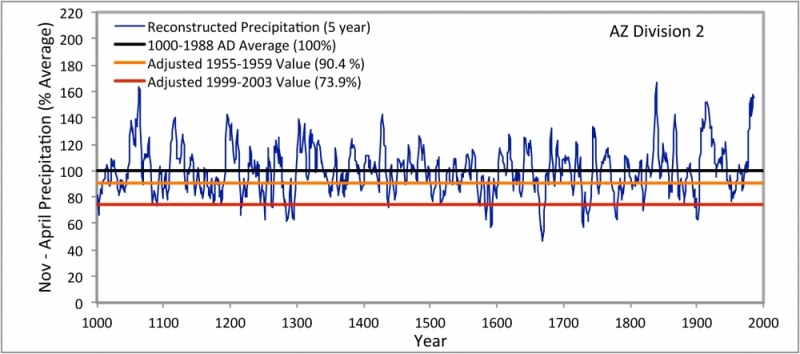

The graph below shows the five-year average precipitation reconstruction for Arizona climate division 2; values are expressed as a percentage of 1000-1988 average precipitation. The adjusted 1955-1959 and 1999-2003 averages for this climate division are provided for comparison (orange and red lines, respectively). These periods correspond to the driest five-year spans in the two most severe dry periods in the instrumental record. Over the entire reconstructed record, several extended dry periods stand out, particularly the late 1000s-early 1100s, late 1200s, early 1300s, late 1500s, late-1700s, and the mid-1900s.


R2 = 62%
View calibration/verification data

5-Year Reconstructed Average (1000-1988) = 155.0 mm/yr; 775.0 mm/5-yr

5-Year Instrumental Average (1896-2010) = 170.3 mm/yr; 851.5 mm/5-yr

Driest Five-year Period Wettest Five-year Period
Years Precipitation (mm) Percent Average Years Precipitation (mm) Percent Average
1666-1670 361.9 46.7 1837-1841 1296.4 167.2
1589-1593 443.6 57.2 1061-1065 1268.8 163.7
1728-1732 445.0 57.4 1865-1869 1109.6 143.1
1283-1287 474.5 61.2 1194-1198 1107.7 142.9
1735-1739 480.9 62.0 1426-1430 1107.7 142.9


Instrumental Record and Extremes

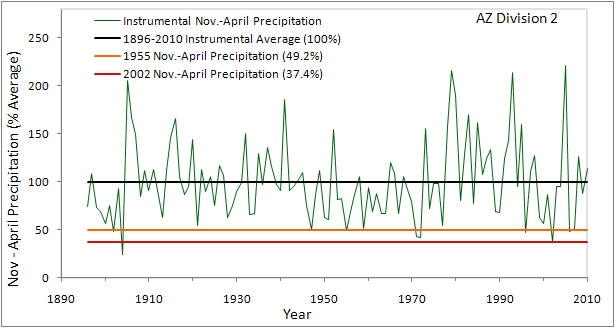

Precipitation was below average for climate division 2 (37.4%) in 2002, making it the second driest year in the instrumental record. Based on five-year precipitation averages, 2001-2005 was one of the driest spells in the historical record for this climate division.

Driest One-Year Period Wettest One-Year Period
    Year      Precipitation (mm) Percent Average      Year      Precipitation (mm) Percent Average
1904 40.9 24.1 2005 376.2 221.5
2002 63.5 37.4 1979 366.5 215.8
1972 70.1 41.3 1993 364.0 214.3
1971 73.2 43.1 1905 348.5 205.2
1996 79.2 46.7 1980 323.3 190.4
Driest Five-Year Period Wettest Five-Year Period
Year Precipitation (mm) Percent Average Year Precipitation (mm) Percent Average
1902-1906 504.4 59.2 1981-1985 1334.5 156.7
1900-1904 545.3 64.0 1980-1984 1312.7 154.2
2001-2005 574.5 67.5 1993-1997 1249.4 146.7
1901-1905 579.9 68.1 1907-1911 1220.0 143.3
1957-1961 612.6 72.0 1978-1982 1215.1 142.7

Calibration and Verification Data

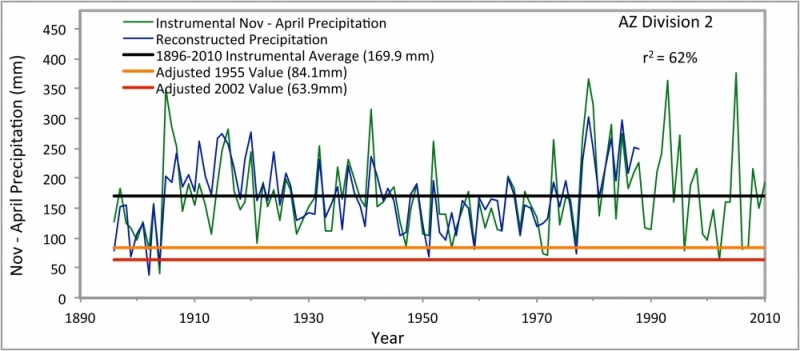

The graph below shows a comparison between instrumental and reconstructed November-April precipitation for Arizona climate division 2. The graph shows excellent agreement between the tree-ring and instrumental records over most of the 20th century. The R2, in this case 62%, indicates the amount of variation in the instrumental precipitation record captured by tree rings. Higher R2 values indicate more reliable reconstructions.

How the Data Were Calculated

The 1000-year reconstruction of cool-season precipitation is presented as the combined neural network and linear regression reconstructions. The two separate reconstructions were combined in the following manner. If both the linear regression and neural network reconstructions were below the calibration in any given year, then the linear regression value was used. In all other instances, a simple average of the two reconstructions was used. The rationale for this approach is based on detailed analyses and the simple observation that the linear regression does a better job at capturing the drought years. The reconstructions for each division were “smoothed” using a centered 5-year running average.

These reconstructions were developed using millimeters as the measurement unit. However, it is sometimes easier to think of precipitation in terms of the percentage of the long term average. To convert these data to percentage of average each reconstructed value was simply divided by the average of the reconstruction. The same procedure was used to convert instrumental precipitation.

The threshold line for the most recent drought period was calculated by first determining the percentage of average precipitation received during the year or averaged over the last five years, then dividing by the long term averages. In the case of the five-year smoothed reconstructions the average is based on five year averages over the 1896-2010 period. Comparison of the most recent drought in the 2000s to the long term average is problematic, however, because these reconstructions only extend through 1988. In addition, tree-ring data do not match the variance contained within the instrumental data so an adjustment is needed to be made in order to make more reasonable comparisons. The 2002 value (or the 5 year average) was first adjusted relative to the 1896-1988 reference period by calculating the percentage of average over the entire period (1896-2010), then determining the value relative to only the common overlap period (1896-1988). For example, Arizona Climate Division 2 recorded 63.5 mm of precipitation in 2002, which is 37.4% of the 1896-2010 average (169.9 mm). To put this into the context of the tree-ring reconstruction in terms of millimeters of precipitation, this value (37.4% or 0.374) was multiplied by the reconstructed average over the period 1896-1988 (170.9), which yields an adjusted value of 63.9 mm.

A note about dates: while a single year or range of dates is given in the data for simplicity, cool-season precipitation estimates are for November-April. For example, data listed for 2002 would actually be from November 2001 to April 2002.
